Gadget Menu Files
Gadget files (GDD extension) are text files that detail specifics within a certain menu (i.e. selection boxes, scroll bars, context-sensitive help, etc).
wep_load.gdd

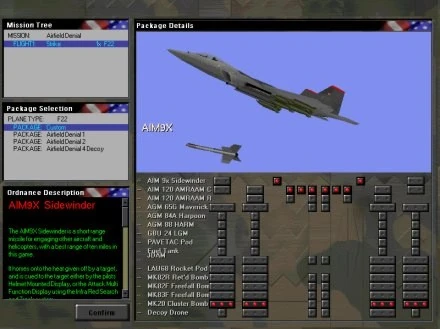

Wep_load is the menu that provides for a custom loadout in a TAW dynamic campaign. Here is the how it looks in-game:

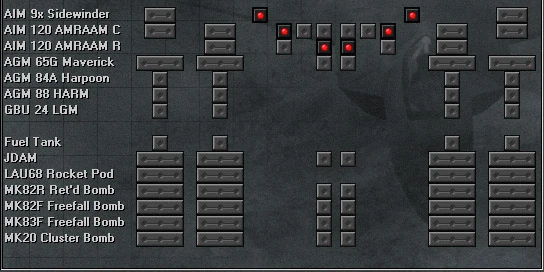

Here is the text of the file:
WINDOW "wep_load" STYLE 0xca0000 : 0x200 AT 240 0 DIM 560 570 TEXT "wep_load" USE_BACKGROUND 0 LITERAL "wl_" GADGET "package_detail" AT 5 7 DIM 542 18 TYPE 23 FONT 0 BMPDIM 542 18 USE_BITMAP 1 GROUP 0 END GADGET "AGM_65G_Maverick" AT 8 340 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "AGM 65G Maverick" GROUP 0 END GADGET "AIM_120_AMRAAM R" AT 8 324 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "AIM 120 AMRAAM R" GROUP 0 END GADGET "AIM_120_AMRAAM C" AT 8 308 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "AIM 120 AMRAAM C" GROUP 0 END GADGET "AIM_9x_Sidewinder" AT 8 292 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "AIM 9x Sidewinder" GROUP 0 END GADGET "AGM_84A_HARPOON" AT 8 356 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "AGM 84A Harpoon" GROUP 0 END GADGET "AGM_88_HARM" AT 8 372 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "AGM 88 HARM" GROUP 0 END GADGET "GBU_24_LGM" AT 8 388 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "GBU 24 LGM" GROUP 0 END GADGET "PAVETAC_POD" AT 8 404 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "PAVETAC Pod" GROUP 0 END GADGET "FUEL_TANK" AT 8 420 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "Fuel Tank" GROUP 0 END GADGET "JDAM" AT 8 436 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "JDAM" GROUP 0 END GADGET "LAU68_ROCKET_POD" AT 8 452 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "LAU68 Rocket Pod" GROUP 0 END GADGET "MK82R_RETD_BOMB" AT 8 468 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "MK82R Ret'd Bomb" GROUP 0 END GADGET "MK82F_FREEFALL_BOMB" AT 8 484 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "MK82F Freefall Bomb" GROUP 0 END GADGET "MK83F_FREEFALL_BOMB" AT 8 500 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "MK83F Freefall Bomb" GROUP 0 END GADGET "MK20_CLUSTER_BOMB" AT 8 516 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "MK20 Cluster Bomb" GROUP 0 END GADGET "DECOY_DRONE" AT 8 532 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "Decoy Drone" GROUP 0 END GADGET "WNDTXT_WL_W1_VAL" AT 8 292 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W2_VAL" AT 8 308 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W3_VAL" AT 8 324 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W4_VAL" AT 8 340 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W5_VAL" AT 8 356 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W6_VAL" AT 8 372 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W7_VAL" AT 8 388 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W8_VAL" AT 8 404 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W9_VAL" AT 8 420 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W10_VAL" AT 8 436 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W11_VAL" AT 8 452 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W12_VAL" AT 8 468 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W13_VAL" AT 8 484 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W14_VAL" AT 8 500 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W15_VAL" AT 8 516 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "WNDTXT_WL_W16_VAL" AT 8 532 DIM 40 16 TYPE 1 FONT 1 COLOUR 200 200 200 TEXT "--" GROUP 0 END GADGET "w15p12" AT 344 516 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w14p12" AT 344 500 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w13p12" AT 344 484 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w12p12" AT 344 468 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w15p13" AT 320 516 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w14p13" AT 320 500 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w13p13" AT 320 484 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w12p13" AT 320 468 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w10p12" AT 344 436 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w10p13" AT 320 436 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w4p12" AT 344 340 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w4p13" AT 320 340 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w3p12" AT 344 324 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w3p13" AT 320 324 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w3p6" AT 384 324 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w3p7" AT 280 324 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w1p4" AT 408 292 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p6" AT 384 308 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p8" AT 364 308 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p10" AT 344 308 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p11" AT 320 308 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p9" AT 300 308 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p7" AT 280 308 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w1p5" AT 256 292 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w1p1" AT 148 292 DIM 32 16 TYPE 42 FONT 0 USE_BITMAP 29 COLOUR 0 0 0 USE_S_BITMAP 28 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p1" AT 148 308 DIM 32 16 TYPE 42 FONT 0 USE_BITMAP 29 COLOUR 0 0 0 USE_S_BITMAP 28 S_COLOUR 0 0 0 GROUP 0 END GADGET "w4p1" AT 140 340 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w5p1" AT 156 356 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w6p1" AT 156 372 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w7p1" AT 156 388 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w8p1" AT 156 404 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w9p1" AT 156 420 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w10p1" AT 140 436 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w11p1" AT 140 452 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w12p1" AT 140 468 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w13p1" AT 140 484 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w14p1" AT 140 500 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w15p1" AT 140 516 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w16p0" AT 508 532 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w16p3" AT 200 532 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w16p12" AT 344 532 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w16p13" AT 320 532 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w16p2" AT 432 532 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w16p1" AT 156 532 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "Package Details" AT 8 8 DIM 40 16 TYPE 1 FONT 0 COLOUR 255 255 255 TEXT "Package Details" GROUP 0 END GADGET "w2p2" AT 440 308 DIM 32 16 TYPE 42 FONT 0 USE_BITMAP 29 COLOUR 0 0 0 USE_S_BITMAP 28 S_COLOUR 0 0 0 GROUP 0 END GADGET "w3p2" AT 440 324 DIM 32 16 TYPE 42 FONT 0 USE_BITMAP 29 COLOUR 0 0 0 USE_S_BITMAP 28 S_COLOUR 0 0 0 GROUP 0 END GADGET "w4p2" AT 432 340 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w5p2" AT 448 356 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w6p2" AT 448 372 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w7p2" AT 448 388 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w8p2" AT 448 404 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w9p2" AT 448 420 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w10p2" AT 432 436 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w11p2" AT 432 452 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w12p2" AT 432 468 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w13p2" AT 432 484 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w14p2" AT 432 500 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w15p2" AT 432 516 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p3" AT 208 308 DIM 32 16 TYPE 42 FONT 0 USE_BITMAP 29 COLOUR 0 0 0 USE_S_BITMAP 28 S_COLOUR 0 0 0 GROUP 0 END GADGET "w3p3" AT 208 324 DIM 32 16 TYPE 42 FONT 0 USE_BITMAP 29 COLOUR 0 0 0 USE_S_BITMAP 28 S_COLOUR 0 0 0 GROUP 0 END GADGET "w4p3" AT 200 340 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w5p3" AT 216 356 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w6p3" AT 216 372 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w7p3" AT 216 388 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w8p3" AT 216 404 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w9p3" AT 216 420 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w10p3" AT 200 436 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w11p3" AT 200 452 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w12p3" AT 200 468 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w13p3" AT 200 484 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w14p3" AT 200 500 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w15p3" AT 200 516 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w1p0" AT 500 292 DIM 32 16 TYPE 42 FONT 0 USE_BITMAP 29 COLOUR 0 0 0 USE_S_BITMAP 28 S_COLOUR 0 0 0 GROUP 0 END GADGET "w2p0" AT 500 308 DIM 32 16 TYPE 42 FONT 0 USE_BITMAP 29 COLOUR 0 0 0 USE_S_BITMAP 28 S_COLOUR 0 0 0 GROUP 0 END GADGET "w4p0" AT 492 340 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w6p0" AT 508 372 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w7p0" AT 508 388 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w8p0" AT 508 404 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w9p0" AT 508 420 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "w10p0" AT 492 436 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w11p0" AT 492 452 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w12p0" AT 492 468 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w13p0" AT 492 484 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w14p0" AT 492 500 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w15p0" AT 492 516 DIM 48 16 TYPE 42 FONT 0 USE_BITMAP 31 COLOUR 0 0 0 USE_S_BITMAP 30 S_COLOUR 0 0 0 GROUP 0 END GADGET "w5p0" AT 508 356 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END GADGET "grey_f1" AT 4 4 DIM 544 552 TYPE 16 FONT 0 STYLE 0x7 : 0x200 GROUP 0 END GADGET "f22_bmp" AT 8 28 DIM 536 256 TYPE 23 FONT 0 BMPDIM 536 256 USE_BITMAP 20 GROUP 0 END :TOOLTIPS TOOLTIP "w15p12" TEXT "Load Weapon" TOOLTIP "w14p12" TEXT "Load Weapon" TOOLTIP "w13p12" TEXT "Load Weapon" TOOLTIP "w12p12" TEXT "Load Weapon" TOOLTIP "w15p13" TEXT "Load Weapon" TOOLTIP "w14p13" TEXT "Load Weapon" TOOLTIP "w13p13" TEXT "Load Weapon" TOOLTIP "w12p13" TEXT "Load Weapon" TOOLTIP "w10p12" TEXT "Load Weapon" TOOLTIP "w10p13" TEXT "Load Weapon" TOOLTIP "w4p12" TEXT "Load Weapon" TOOLTIP "w4p13" TEXT "Load Weapon" TOOLTIP "w3p12" TEXT "Load Weapon" TOOLTIP "w3p13" TEXT "Load Weapon" TOOLTIP "w3p6" TEXT "Load Weapon" TOOLTIP "w3p7" TEXT "Load Weapon" TOOLTIP "w1p4" TEXT "Load Weapon" TOOLTIP "w2p6" TEXT "Load Weapon" TOOLTIP "w2p8" TEXT "Load Weapon" TOOLTIP "w2p10" TEXT "Load Weapon" TOOLTIP "w2p11" TEXT "Load Weapon" TOOLTIP "w2p9" TEXT "Load Weapon" TOOLTIP "w2p7" TEXT "Load Weapon" TOOLTIP "w1p5" TEXT "Load Weapon" TOOLTIP "w1p1" TEXT "Load Weapon" TOOLTIP "w2p1" TEXT "Load Weapon" TOOLTIP "w4p1" TEXT "Load Weapon" TOOLTIP "w5p1" TEXT "Load Weapon" TOOLTIP "w6p1" TEXT "Load Weapon" TOOLTIP "w7p1" TEXT "Load Weapon" TOOLTIP "w8p1" TEXT "Load Weapon" TOOLTIP "w9p1" TEXT "Load Weapon" TOOLTIP "w10p1" TEXT "Load Weapon" TOOLTIP "w11p1" TEXT "Load Weapon" TOOLTIP "w12p1" TEXT "Load Weapon" TOOLTIP "w13p1" TEXT "Load Weapon" TOOLTIP "w14p1" TEXT "Load Weapon" TOOLTIP "w15p1" TEXT "Load Weapon" TOOLTIP "w16p0" TEXT "Load Weapon" TOOLTIP "w16p3" TEXT "Load Weapon" TOOLTIP "w16p12" TEXT "Load Weapon" TOOLTIP "w16p13" TEXT "Load Weapon" TOOLTIP "w16p2" TEXT "Load Weapon" TOOLTIP "w16p1" TEXT "Load Weapon" TOOLTIP "w2p2" TEXT "Load Weapon" TOOLTIP "w3p2" TEXT "Load Weapon" TOOLTIP "w4p2" TEXT "Load Weapon" TOOLTIP "w5p2" TEXT "Load Weapon" TOOLTIP "w6p2" TEXT "Load Weapon" TOOLTIP "w7p2" TEXT "Load Weapon" TOOLTIP "w8p2" TEXT "Load Weapon" TOOLTIP "w9p2" TEXT "Load Weapon" TOOLTIP "w10p2" TEXT "Load Weapon" TOOLTIP "w11p2" TEXT "Load Weapon" TOOLTIP "w12p2" TEXT "Load Weapon" TOOLTIP "w13p2" TEXT "Load Weapon" TOOLTIP "w14p2" TEXT "Load Weapon" TOOLTIP "w15p2" TEXT "Load Weapon" TOOLTIP "w2p3" TEXT "Load Weapon" TOOLTIP "w3p3" TEXT "Load Weapon" TOOLTIP "w4p3" TEXT "Load Weapon" TOOLTIP "w5p3" TEXT "Load Weapon" TOOLTIP "w6p3" TEXT "Load Weapon" TOOLTIP "w7p3" TEXT "Load Weapon" TOOLTIP "w8p3" TEXT "Load Weapon" TOOLTIP "w9p3" TEXT "Load Weapon" TOOLTIP "w10p3" TEXT "Load Weapon" TOOLTIP "w11p3" TEXT "Load Weapon" TOOLTIP "w12p3" TEXT "Load Weapon" TOOLTIP "w13p3" TEXT "Load Weapon" TOOLTIP "w14p3" TEXT "Load Weapon" TOOLTIP "w15p3" TEXT "Load Weapon" TOOLTIP "w1p0" TEXT "Load Weapon" TOOLTIP "w2p0" TEXT "Load Weapon" TOOLTIP "w4p0" TEXT "Load Weapon" TOOLTIP "w6p0" TEXT "Load Weapon" TOOLTIP "w7p0" TEXT "Load Weapon" TOOLTIP "w8p0" TEXT "Load Weapon" TOOLTIP "w9p0" TEXT "Load Weapon" TOOLTIP "w10p0" TEXT "Load Weapon" TOOLTIP "w11p0" TEXT "Load Weapon" TOOLTIP "w12p0" TEXT "Load Weapon" TOOLTIP "w13p0" TEXT "Load Weapon" TOOLTIP "w14p0" TEXT "Load Weapon" TOOLTIP "w15p0" TEXT "Load Weapon" TOOLTIP "w5p0" TEXT "Load Weapon" END_WINDOW

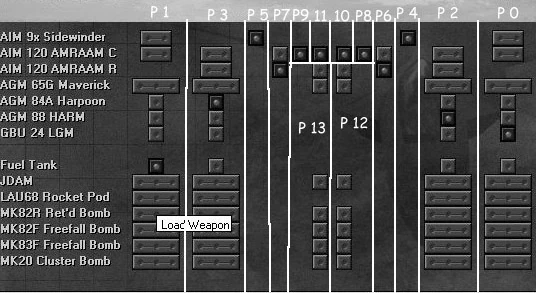

Nomenclature of the gadgets is w#p#, which corresponds to Weapon # at Hardpoint # (e.g. w1p5 refers to weapon 1, the AIM-9X on Hardpoint 5). The following diagram displays the hardpoints by number.
Each of the GADGET lines is broken down as follows:
GADGET "w1p5" AT 256 292 DIM 16 16 TYPE 42 FONT 0 USE_BITMAP 27 COLOUR 0 0 0 USE_S_BITMAP 26 S_COLOUR 0 0 0 GROUP 0 END
where 256 292 refers to the onscreen coordinates (X,-Y) and both instances of USE_BITMAP and COLOUR refer to the activated and deactivated stations respectively.
Bitmaps 26 and 27 refer to a single weapon on a hardpoint (e.g. internal stores), 28 and 29 refer to a dual rack (MER) as seen with the external AIM missiles, and 30 and 31 correspond with a triple rack (TER) for a maximum loaded external hardpoint.
After analyzing the custom loadout screen, it appears that weapons 8 and 16 are not implemented in the game. This also accounts for the space between the GBU24 (weapon 7) and Fuel Tank (weapon 9), as well as the space after the Mk20 Rockeye (weapon 15). However, as you can see the gadgets are not remmed out in the datafile. This leads me to believe that the function was disabled in the EXE, although I'm sure the hook is there.
Upon further review, it appears that Decoys are weapon 16, and the PAVETAC pod is weapon 8. While PAVETAC functionality has been integrated into the existing LANTIRN system, I would definitely be interested in somehow re-enabling weapon 16 (decoy).
